Acoustalay® for Floated Laminate or Engineered Floors

Acoustalay® for
Floated Laminate
or Engineered Floors

Acoustalay® for Fixed
Engineered or
Solid Wood Floors

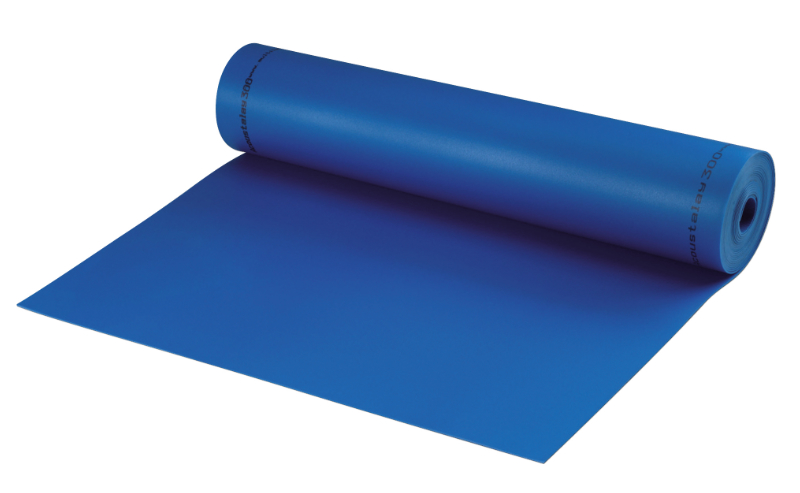

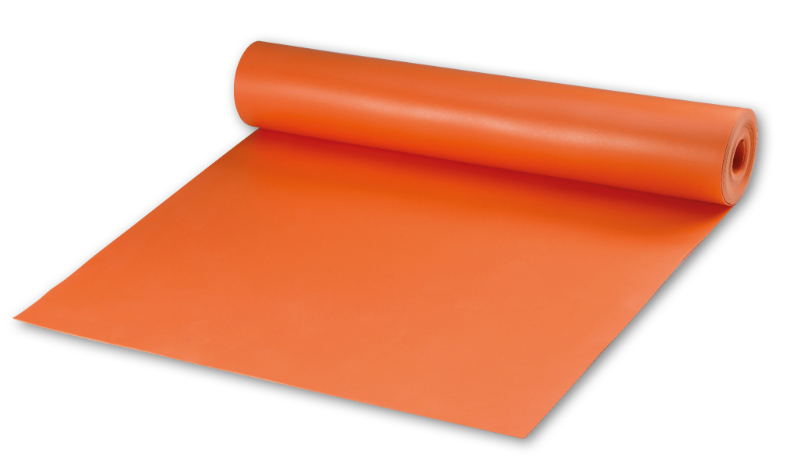

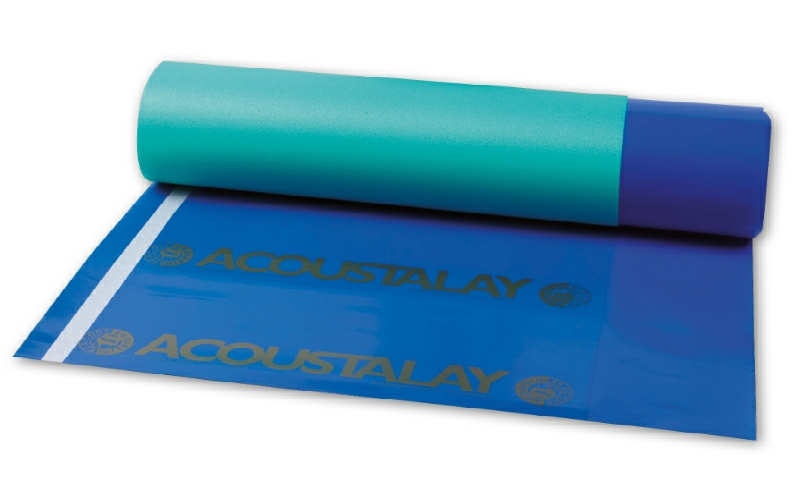

	Acoustalay® 300	Acoustalay® 1500	Acoustalay® 250 DPM with 200mm overlap

Key Features	The density and uniform cell structure of the foam provides a vapour barrier when joints are taped.		The built-in membrane (to EN 13967) with 200mm overlap & integral adhesive strip provides a complete damp proof membrane (DPM) for use when sub-floor moisture level is >4%.
Key Features	Suitable for use with underfloor heating	Ultra-low thermal insulation, ideal for use with underfloor heating
Flooring Type	Laminate or Engineered	Laminate or Engineered	Laminate or Engineered
Roll sizes	10m², 100m²	10m², 150m²	10m², 100m²
RRP/m²	£3.50	£4.00	£8.75
10-year protection guarantee
	Medium traffic: Living Room, Kitchen, Hallway	High traffic: Airports & Public areas Acoustic & Heavy Loading	Medium traffic: Living Room, Kitchen High Moisture areas
	Heavy Domestic /Commercial 3kPa 300Kg/m2	Heavy Commercial 15kPa 1500Kg/m2	Domestic/Commercial 2.5kPa 250Kg/m2
	28kPa 2800Kg/m2	60kPa 6000Kg/m2	28kPa 2800Kg/m2
	3mm (2.7mm)	2mm (1.8mm)	3mm (2.7mm)
	0.088 m2 K/W	0.052 m2 K/W	0.094 m2 K/W
	Yes	Yes	Yes
	Yes	Yes	DPM Damp proof membrane

	22dB	20dB	19dB
Installation Guide	Installation Guide		Installation Guide

ACOUSTALAY® for Floated Laminate or Engineered Floors

Produced from a unique formula of physically cross-linked polyolefin foam; ACOUSTALAY®

ACOUSTALAY® offers a combination of cushioning support and 100% recovery, giving a market leading “Comfort Walk”

With a 10-year protection guarantee ACOUSTALAY® gives you underlay complimenting your floor, from domestic to heavy

Acoustalay® Brochure

Technical Overview

provides; premium quality trade underlay, exceptional all-round performance & insulting spot levelling between the floor & sub-floor - preventing rocking & extending the life of the floor.

A complete, fully tested, and certified range, meeting industry standards exactly.

foot feel while maintaining its thickness and functional properties for the life of the floor.

commercial uses. Developed with vapour & DPM barriers & for use in acoustically sensitive areas or with underfloor

heating; ACOUSTALAY® has the underlay for your installation.
